Vendo V-23

Vendo · Model archive

Original specifications and identification notes preserved from the Soda-Machines.com reference archive.

Vending Capacity
23 Bottles
Precool Capacity
7 Bottles
Dimensions
36" high, 24" wide, 21" deep
Weight
156 lbs.
Production Dates
1949 – 1959
Price New
N/A
Comments

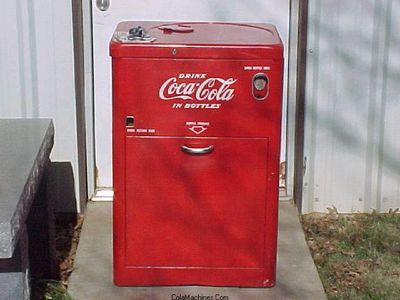

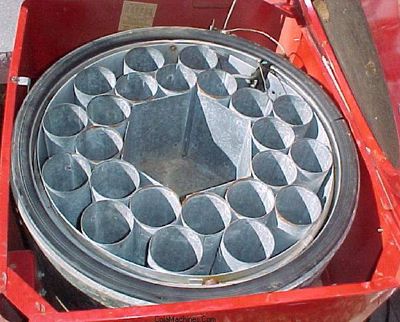

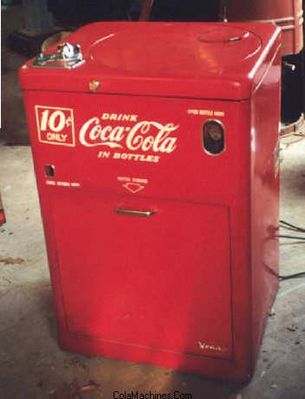

The Vendo 23 came in two versions: The Standard, like the one pictured, has a red top and the Deluxe model has a silver top. Another difference between the two versions is the Deluxe model has an embossed "Coca-Cola" logo on the front where as the Standard version is painted on. Many people refer to the V-23 and other models like it as a "Spin Top" because the circular section of the top spins to to the next available bottle of soda. Other "Spin Tops" include but are not limited to the Vendo V-59 , Vendo Junior , Vendo V-39 Standard and the Vendo V-39 Master . Due to low manufacturing costs, the V-23 can be readily found and isn't considered highly collectible. These machines can still be purchased at reasonable prices.

Archive record 545. Specifications and historical notes were recovered from Soda-Machines.com. Measurements, capacities, dates, and original prices are presented as recorded in the source material.
